File and folder operations (copy, move, delete, zip, unzip)

File operations are available for files and folders in the Local and Staging panes.

Below are the top-level directories included in the Staging area within each tenant or client domain storage area:

• ARM—a folder for archiving workspaces and for staging restores via the ARM application.
• ProcessingSource—a folder for storing files you want to process into your RelativityOne workspace.
• StructuredData—a folder for importing and exporting workspace data using Import/Export  and Integration Points. Refer to  Import/Export and Integration Points documentation for more information.
• TenantVM—a folder to temporarily store Utility Server virtual machine (UVM) workflows. Refer to Utility Server documentation for more information.

For information on Staging Area folders, refer to the Staging Area topic and Staging Area FAQ article in Community.

Button legend

The list below identifies the buttons in Staging Explorer.

— Add a new folder to the path location

— Rename the folder

— Copy the selected folders or files

— Move the selected folders or files

— Delete the selected folders or files

— Compress (zip) files

— Extract (unzip) files

— Move up one folder level

— Refresh list

Copying files and folders

To copy one or more folders or files in Staging Explorer:

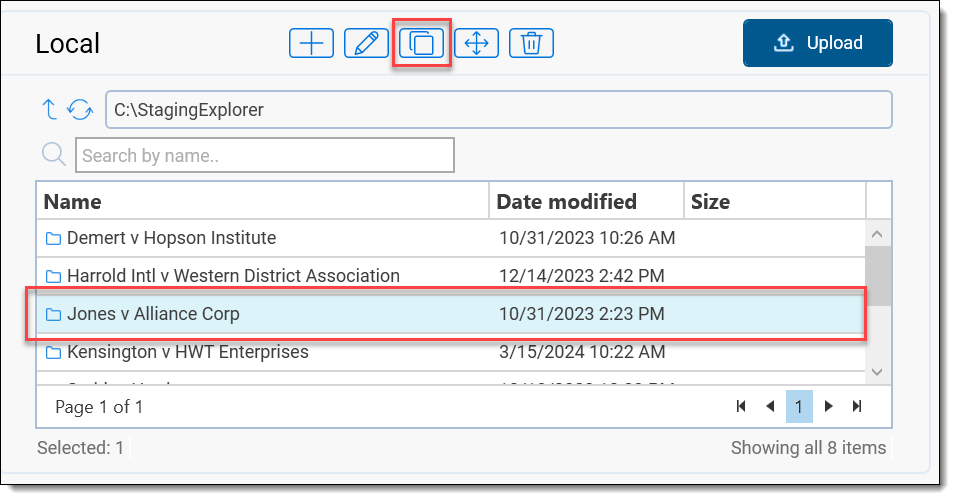

1. Select the folder or file in the Local or Staging pane, and click the Copy button. To select multiple individual folders or files, hold down the CTRL button on your keyboard as you click each one. To select a group of sequential folders or files, select the first one, then hold down the SHIFT button on your keyboard and select the last file in the group.
   Note: The Copy operation overwrites existing files and folders on the destination location. If a file or folder that is being copied exists on the destination location, it will be overwritten. This applies to the Local and Staging panes.

2. In the Copy dialog box, open the destination folder to copy the folder or file and click Place.
   Note: From this dialog, you can also create a new folder by clicking the plus button, as well as rename an existing one by clicking the pencil button.

3.  Monitor the copy progress via the Progress and Status columns displayed in the File Operations tab. When the copy process is complete, you can click the expand plus button to view the copy details.


   • Status—status of the copy.
   • Duration—how long the copy took.
   • Started On—the date and time the copy started.
   • Finished On—the date and time the copy completed.
   • Job ID—unique number of a copy operation.
   • Copied Data—the size of the data currently copied in reference to the total size of the selected data to be copied. This field only applies to the Local pane.
   • Copied Files—the number of files currently copied in reference to the total amount of files selected to be copied.
     Note: When copying items in the Staging pane, the number of Copied Items only represents the number of items, that is folders and/or files, selected and not the total number of files in the folders copied. For example, if two folders containing 100 files each and one other separate file were selected and copied, the Copied Items value would be 3/3, meaning three items were copied (2 folders + 1 file). It would not indicate 201 files were copied (100 files + 100 files +1 file). This is not the case when copying items in the Local pane. In that scenario using our example, the Copied Items value would be 201/201, meaning 200 files from the two folders and one other file were copied.
   • Path issues—the number of skipped and/or failed files with the option to save the details.
     Notes:

     • icon indicates the operation Failed with failed path issues.
     • icon indicates the operation finished with skipped paths, but no failed paths.
     • For active operations, if there are any path issues, failed or skipped, the icon is displayed. However, if the operation finishes with failed paths, the icon is displayed.

Moving files and folders

To move one or more folders or files in Staging Explorer:

1. Select the folder or file in the Local or Staging pane, and click the Move button. To select multiple individual folders or files, hold down the CTRL button on your keyboard as you click each one. To select a group of sequential folders or files, select the first one, then hold down the SHIFT button on your keyboard and select the last file in the group.
   Note: For the Local pane, the Move operation overwrites any existing files and folders on the destination location. However, for the Staging pane, the Move operation will fail and not replace any existing files and folders that already exist on the destination location.


2. On the Move dialog box, open the destination folder to move the folder or file and click Place.
   Note: From this dialog, you can also create a new folder by clicking the plus button, as well as rename an existing one by clicking the pencil button.


3. Monitor the move progress via the Progress and Status columns displayed in the File Operations tab. When the move process is complete, you can click the expand plus button to view the move details.

   • Status—status of the move.
   • Duration—how long the move took.
   • Started On—the date and time the move started.
   • Finished On—the date and time the move completed.
   • Job ID—unique number of a move operation.
   • Moved Data—the size of the data moved in reference to the total size of the selected data to move. This field only applies to the Local pane.
   • Moved Items—the number of items currently moved in reference to the total items selected to be moved.
     Note: When moving items in the Staging pane, the number of Moved Items only represents the number of items, that is folders and/or files, selected and not the total number of files in the folders moved. For example, if two folders containing 100 files each and one other separate file were selected and moved, the Moved Items value would be 3/3, meaning three items were moved (2 folders + 1 file). It would not indicate 201 files were moved (100 files + 100 files +1 file). This is not the case when moving items in the Local pane. In that scenario using our example, the Moved Items value would be 201/201, meaning 200 files from the two folders and one other file were moved.
   • Path issues—the number of skipped and/or failed files with the option to save the details.
   Notes:
   • icon indicates the operation Failed with failed path issues.
   • icon indicates the operation finished with skipped paths, but no failed paths.
   • For active operations, if there are any path issues, failed or skipped, the icon is displayed. However, if the operation finishes with failed paths, the icon is displayed.

Deleting files and folders

To delete one or more folders or files in Staging Explorer:

1. Select the folder or file in the Local or Staging pane, and click the Delete button. To select multiple individual folders or files, hold down the CTRL button on your keyboard as you click each one. To select a group of sequential folders or files, select the first one, then hold down the SHIFT button on your keyboard and select the last file in the group.



2. Click Delete on the delete confirmation dialog.
3. Monitor the deletion progress on the File Operations tab via the Progress and Status columns. When the deletion process is complete, you can click the expand plus button to view the delete details.

   • Status—status of the delete.
   • Duration—how long the deletion process took to complete.
   • Started On—the date and time the deletion process started.
   • Finished On—the date and time the deletion process completed.
   • Job ID—unique number of the delete operation.
   • Deleted Data—the size of the data deleted in reference to the total size of the selected data to delete. This field only applies to the Local pane.
   • Deleted Files—the number of files or folders deleted in reference to the total number of files or folders selected to delete.
     Note: When deleting items in the Staging pane, the number of Deleted Files only represents the number of items, that is folders and/or files, selected and not the total number of files in the folders deleted. For example, if two folders containing 100 files each and one other separate file were selected and deleted, the Deleted Files value would be 3/3, meaning three items were deleted (2 folders + 1 file). It would not indicate 201 files were deleted (100 files + 100 files +1 file). This is not the case when deleting items in the Local pane. In that scenario using our example, the Deleted Files value would be 201/201, meaning 200 files from the two folders and one other file were deleted.
   • Path issues—the number of skipped and/or failed files with the option to save the details.
     Notes:

     • icon indicates the operation Failed with failed path issues.
     • icon indicates the operation finished with skipped paths, but no failed paths.
     • For active operations, if there are any path issues, failed or skipped, the icon is displayed. However, if the operation finishes with failed paths, the icon is displayed.

Zipping (compressing) and unzipping (extracting) files and folders

You can compress archive data for uploading to the Staging Explorer by using the Zip option in the Staging pane. The file extension for the compressed files will be ".zip." Conversely you can extract the files from a zipped file or folder by using the Extract (unzip) option in the Staging pane. Zipping and unzipping files and folders in this manner preserves metadata, enables faster importing time, and improves data management.

Considerations and Limitations

The following are some considerations and limitations when zipping (compressing) and unzipping (extracting) in Staging Explorer:

• Compression and Extractions usage factors with Zip, 7z, and RAR:

		Zip	7z (7-zip)	RAR
Compression (Zip)	Plain	✔	✗	✗
	Password protected	✔	✗	✗
	Multipart (Split type)	✔	✗	✗
	Multipart (Span type)	✗	✗	✗
	Compression level	✔	✗	✗
Extraction (Unzip)	Plain	✔	✔	✔
	Password protected	✔	✔	✗
	Multipart (Split Type)	✔	✔	✔
	Multipart (Span Type)	✗	✗	✗
	Preserve metadata	✔	✔	✔

Zipping (compressing) files and folders

To zip (compress) files and folders:

1. In the Staging pane, select the file or folder to be zipped (compressed), and click the ZIP button.
   Note: You cannot zip files at the root directory level.


2. Do the following:

   • Create a name—type a unique name for the zip file.
   • Compress Level—select whether or not to compress the files in the archive zip file. Every compression method supports several levels of compression. Staging Explorer uses two levels: 6-Normal and 0-Store. The zip extraction (unzipping) process is the same for both options.
     • Normal—this is the default value. The files will be compressed using the standard zip compression process. There will be parity between performance and compression. Typically, compressed files are smaller, take up less storage space, and can be easier to transport than uncompressed files; however, the compressing process may take longer, depending on the files being compressed.
     • Store—select this option to group multiple files together into a single archive zip file without compressing them. This option adds files to the zip archive with maximum possible speed, but without compression. It can be used when compressing files is not necessary or when the compression process will take too long and use too much RAM.
   • Split zip file (multipart zip files)—this toggle is off by default. Toggle it on if you want to compress the data into multiple smaller zip files. Files are zipped with the maximum possible speed, but without any compression. If selected, enter the appropriate size (integer value) for each file in the Split to size field and choose MB (1024² bytes) or GB (1024³ bytes) from the drop-down list. The minimum split part size is 500 MB. The filename format for each zip file will be <Filename>.zip.001, <Filename>.zip.002, <Filename>.zip.003, and so forth. Splitting large zips files into smaller zip files can:
     • improve the transfer process and time.
     • avoid difficulty transferring large zip files.
     • help if you have size limitations for transferring, sharing, or storing data.
     • help in the event of an interruption during the transfer process, as only the parts (files) that did not transfer will need to be resent, instead of having to resend a very large zip file.
   • Set a password—this toggle is off by default. Toggle it on if you want to password protect the file. Then, enter a password in the Password field that appears. AES-256 is used for encryption.

3. Monitor the progress on the File Operations tab via the Progress and Status columns. When the compressing process is complete, you can click expand plus button to view more details.

   • Status—the status of the process (such as, In Queue, In Progress, Finished, Canceled, Failed).
   • Duration—the length of time the process took to complete.
   • Started On—the date and time the process started.
   • Finished On—the date and time the process completed.
   • Job ID—the unique identification number of the operation.
   • Compressed Files—the total number of compressed files out of the total number of files in the job.
   • Failed Files—the total number of files that failed to compress.

Note: During compression, the service creates temporary directory "tmp_Zippy_DoNotRemove_..." in the current working directory. It is essential for the compression operation and cannot be removed manually. The temporary directory is automatically deleted when the job is finished.

Unzipping (extracting) files and folders

To unzip (extract) files and folders:

1. In the Staging pane, select the file or folder to be unzipped (extracted).
   Note: You can only perform this function for one item at a time.

2. Click the Extract button at the top of the Staging pane.


3. For protected archives, enter password. Otherwise, leave this field empty.

   Note: You can only enter a password for 7-Zip (7z) archives.

4. Click Extract.
5. Monitor the progress on the File Operations tab via the Progress and Status columns. When the extracting process is complete, you can click expand plus button to view more details.

   • Status—the status of the process, such as, In Queue, In Progress, Finished, Canceled, Failed.
   • Duration—the length of time the process took to complete.
   • Started On—the date and time the process started.
   • Finished On—the date and time the process completed.
   • Job ID—the unique identification number of the operation.
   • Extracted Files—the total number of extracted files out of the total number of files in the job.
   • Failed Files—the total number of files that failed to be extracted.
