File Log Receiver Configuration

This section describes how to configure file log receiver monitoring using the environmentWatchConfiguration JSON configuration file.

Overview

The file log receiver allows Environment Watch to collect and parse log files from custom sources using the OpenTelemetry Collector. This configuration is intended for Relativity administrators managing Environment Watch on self‑hosted environments who want to extend monitoring to include application‑specific log files (for example, RabbitMQ logs).

By defining log sources in the openTelemetryOverrides section of the custom JSON configuration file, administrators can configure log file paths, multiline handling, regex‑based field extraction, and timestamp parsing.

Assumptions

• The log file is expected to be in plaintext format (not JSON), and its path must be accessible from the host where the Environment Watch Windows service is running.

• The log file must be readable by the Windows account running the Environment Watch Windows service.

• Each log entry is expected to follow a consistent format that can be matched by the provided regex patterns.

• The attributes in the regexPattern must match the exact field names defined in the source code. For RabbitMQ, the expected field names are:

  Field Name	Log Entry Component	Example Value
  rabbitmq_log_date_time	Timestamp	2025-10-28 18:20:43.375000-07:00
  severity	Log level	info
  rabbitmq_pid_node	First segment of PID <node.process.serial>	0
  rabbitmq_pid_process	Second segment of PID	211
  rabbitmq_pid_serial	Third segment of PID	0
  message	Log message body	ra: starting system coordination

  Sample log entry:

  Copy

  2025-10-28 18:20:43.375000-07:00 [info] <0.211.0> ra: starting system coordination


Properties Table

The following table lists the properties used to configure a log source in the custom JSON configuration file.

Configure File Log Receiver

The file log receiver is configured in the openTelemetryOverrides section of the custom JSON configuration file. The logSources array contains one or more log source objects. For log sources to monitor, locate logSources under the openTelemetryOverrides section and update the configuration as shown below.

• type : Set to the identifier for the log source (e.g., "rabbitmq").
• enabled : Set to true to enable log collection for this source.
• logFilePath : Specify the full path to the log file on the host.
• multilineStartPattern : Provide a regex pattern that matches the beginning of each log entry.
• regexPattern : Provide a regex pattern with named capture groups to extract fields from each log entry.
• timestampLayout : Specify the format string used to parse the extracted timestamp.

Example

{
  "environmentWatchConfiguration": {
    "monitoring": {
      "instance": {
        "sources": {
          "certificates": {},
          "windowsServices": {}
        },
        "otelCollectorYamlFiles": []
      },
      "installedProducts": [],
      "hosts": [],
      "openTelemetryOverrides": {
            "logSources": [
              {
                "type": "rabbitmq",
                "enabled": true,
                "logFilePath": "C:\\rabbitmq\\data\\log\\rabbit@localhost.log",
                "multilineStartPattern": "^\\d{4}-\\d{2}-\\d{2} \\d{2}:\\d{2}:\\d{2}\\.\\d{6}[+-]\\d{2}:\\d{2}",
                "regexPattern": "^(?P<rabbitmq_log_date_time>\\d{4}-\\d{2}-\\d{2} \\d{2}:\\d{2}:\\d{2}\\.\\d{6}[+-]\\d{2}:\\d{2}) \\[(?P<severity>[a-z]*)\\] <(?P<rabbitmq_pid_node>\\d+)\\.(?P<rabbitmq_pid_process>\\d+)\\.(?P<rabbitmq_pid_serial>\\d+)>[ \\t]*(?P<message>[\\s\\S]*)$",
                "timestampLayout": "%Y-%m-%d %H:%M:%S.%f%j"
              }
            ]
        }
    },
    "alertNotificationHandlers": {}
  }
}

Default Behavior

Defaults apply at two levels: whether a log source is enabled, and the individual configuration properties used to parse logs.

If a log source is not explicitly configured in the logSources array, it will use its default settings from the source code. For example, if the RabbitMQ log source is not defined in the JSON configuration, it will not be enabled by default since the default enabled value for the RabbitMQ log source is false. To enable it, you must explicitly define it in the logSources array with "enabled": true.

At the property level, if a property is not set or is set to an empty or null value, it falls back to the default value defined in the source code. This applies to the following properties:

Verification in Kibana

• Navigate to Kibana > Discover.
• Select the logs-* data view.

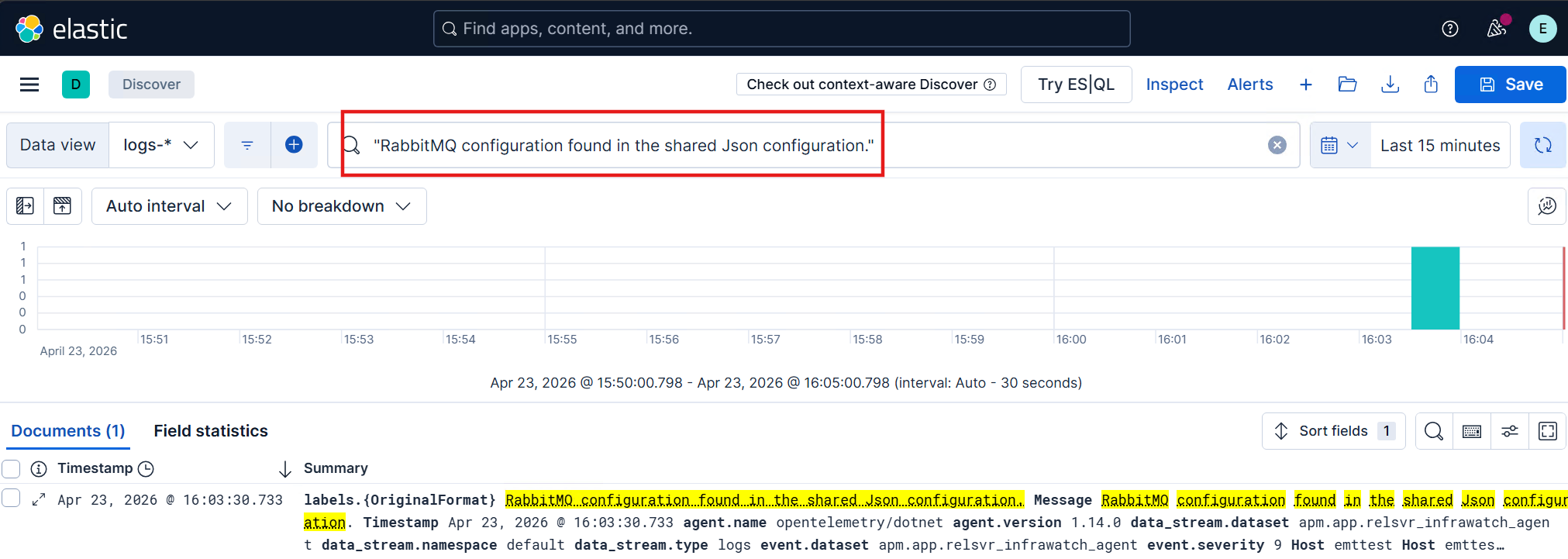

• Search for "RabbitMQ configuration found in the shared Json configuration." to confirm that Environment Watch detected the RabbitMQ file log receiver configuration.

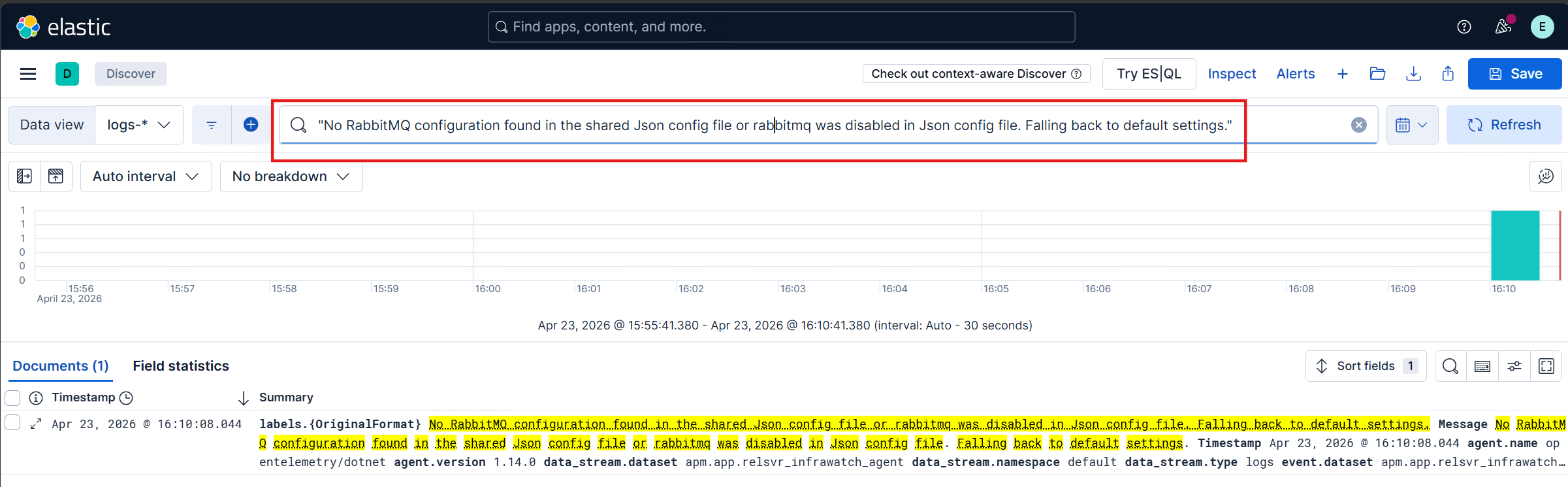

• If enabled is false, search for "No RabbitMQ configuration found in the shared Json config file or rabbitmq was disabled in Json config file. Falling back to default settings." to confirm that the file log receiver was not enabled or was disabled in the JSON configuration file.

• Search for service.name: "server_rabbitmq" in the logs-* data view.

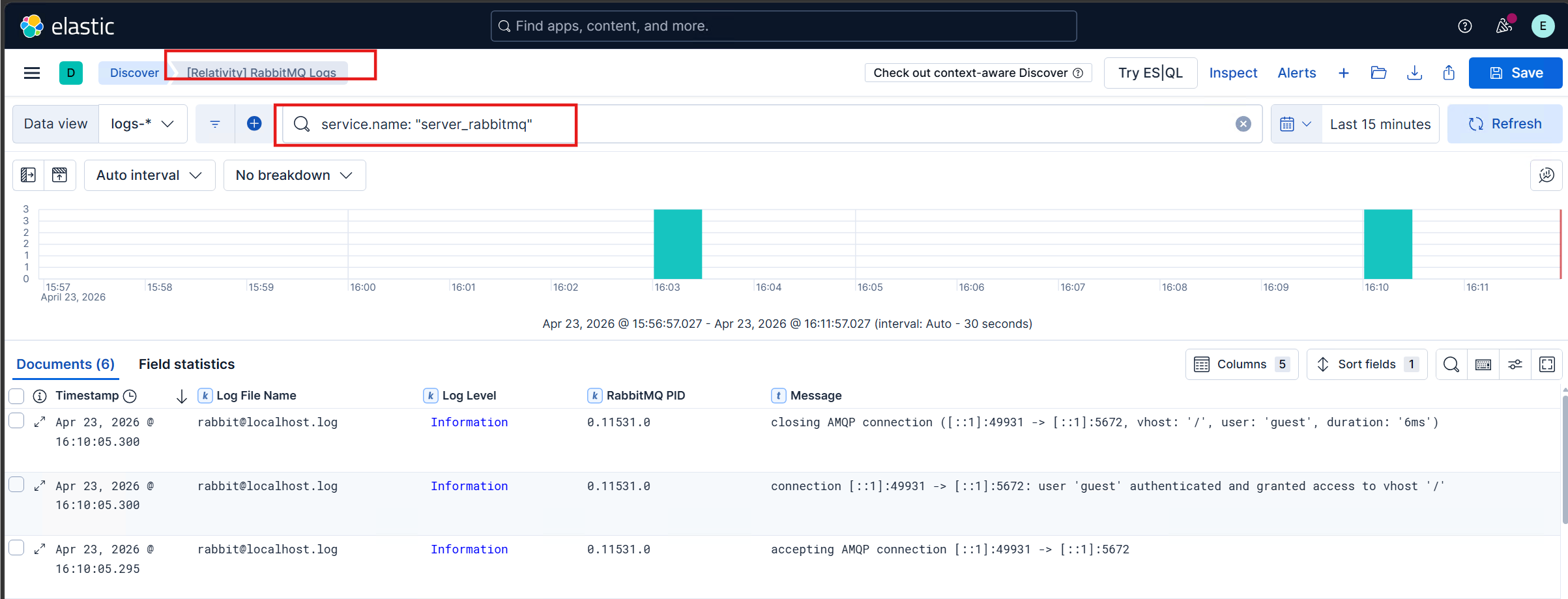

• Ensure that log entries from the RabbitMQ log file appear in Kibana. The example below demonstrates how RabbitMQ log entries from the file log receiver are successfully collected and displayed in Kibana.

Troubleshooting

Refer to the Troubleshooting Guide to resolve any custom JSON file log receiver configuration issues.
