Relativity Fileshares
This dashboard monitors connectivity between Relativity Servers, SQL BCP, and the file shares that Relativity actively supports. It validates read/write access to the default Relativity file share and the default BCP share from all Relativity server roles that require access, including Agent, Web, Queue Manager, and Worker servers. The dashboard reflects the current accessibility status of all monitored file shares, while the alerting system continuously evaluates connectivity in the background. When an issue is detected, alerts identify the affected file share, and the dashboard provides detailed context to help pinpoint the source of the problem. Most Relativity file shares are supported; however, the conversion cache share is currently excluded. Support for monitoring the conversion cache share is planned for release in 2026.

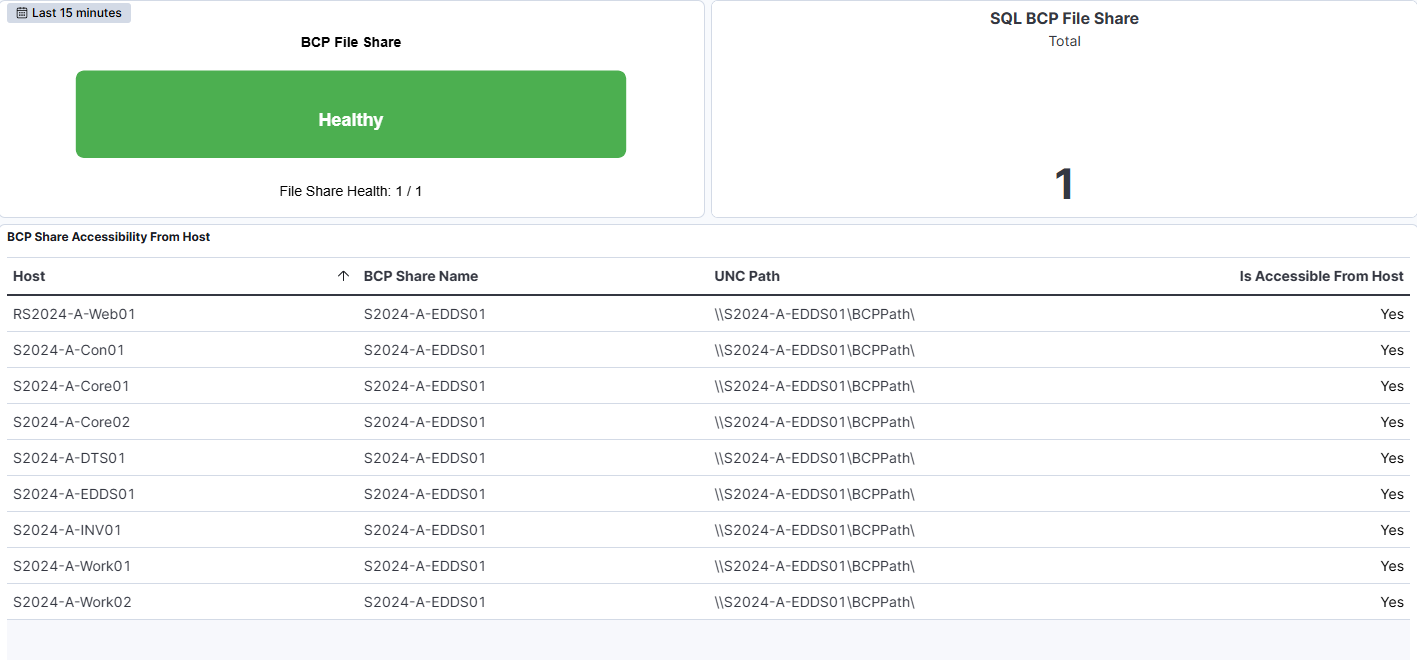

SQL BCP Share Accessibility
This view shows the health indicator for the 'SQL BCP share' along with key metrics and accessibility details. The accompanying metric shows how many 'SQL BCP' shares are currently being monitored. Below, the table BCP Share Accessibility From Host lists each monitored host, the BCP share name, the UNC path, and whether the share is accessible from that host. If a share is not accessible, the value in the 'Is Accessible From Host' column appears as 'No' in red, drawing immediate attention to connectivity issues. When an alert is triggered, the dashboard highlights the corresponding accessibility failure, allowing users to quickly identify and investigate the specific host or file share experiencing issues.
Relativity Fileshares Accessibility

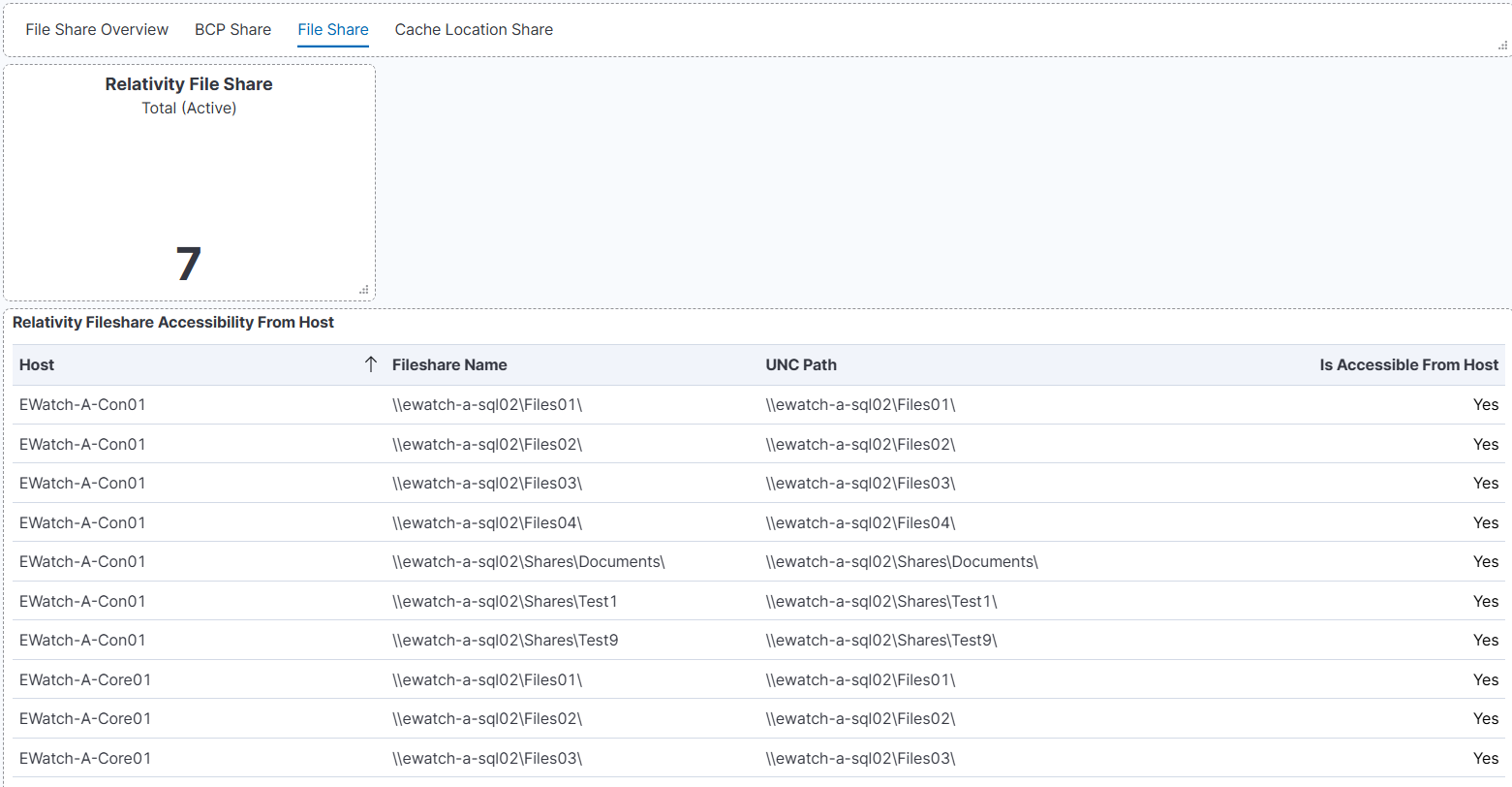

This section provides similar visibility for the Relativity file shares. The metric shows the number of fileshares being tracked; in this example, seven are actively monitored. The accompanying table lists each fileshare with its accessibility status, allowing you to verify that all Relativity file shares are reachable from their respective servers. If an alert is raised, the dashboard clearly identifies the affected share, supporting rapid diagnosis and resolution.
Use Cases
| Use Case | Description |
|---|---|
| Monitor file share and BCP health | Confirm that SQL BCP and all Relativity file shares are accessible from Relativity servers. |
| Improve alert visibility | Instantly detect and investigate accessibility issues using clear, color-coded health indicators. |
| Troubleshoot proactively | Identify connectivity problems before they lead to workflow interruptions. |
| Validate operational readiness | Use the dashboard during environment checks or maintenance windows to verify that all file shares are online and responding correctly. |
