# Managing a legal hold project

Managing a Legal Hold project includes creating, reviewing, updating, and closing projects.

## Creating a project

Create a legal hold project in the Projects tab using the Project Wizard. Using the project wizard, you can create a new legal hold or project from scratch or from a template in six steps.

To start creating a project, navigate to the Projects tab:

1. From the Projects tab, click **New Project**.
   The Create New Project dialog appears.
2. Select one of the following options:
   - **Create from Template**—create a new project using a existing template. See [Legal Hold template](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Managing_workspace_security.md#Legal) for more information.
   - **Create Blank Project**—create a new project from scratch.
3. If you're creating a project from a template, select the template in the drop-down menu.
4. Select **Yes** to use the project wizard. Select **No** to use the alternate project creation method.
5. Click **Create**.

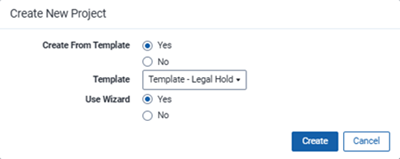

![The Create New Project modal window.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Legal_Hold/SCR_CreateNewProject.png)

From here, use the Legal Hold Project Wizard.

> **Note:** If the Project Wizard is disabled or you do not have the proper permissions, see the [Alternate project creation method](#Alternate).

### Using the project wizard

The Legal Hold project wizard takes you through each step for creating a legal hold project. After completing the projects details, communications, schedule, preserve in place, managing custodians, and summary steps, the project is set up.

When creating a new project, the project wizard appears by default. To disable to the project wizard, navigate to Legal Hold Settings. In Legal Hold Settings, set the Use Project Wizard value to No. When set to No, the wizard is hidden on the New Project modal when you click the New Project. For more information, see [Adding legal hold settings](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Legal_Hold_Settings.md). When creating a new project, each step of creating a project is separate. For information on creating a project using the old method, see [Alternate project creation method](#Alternate).

When you have the Preservation hold (Legacy) application installed, there will be a *Preserve in place* step in the wizard. If you do not have the Preservation hold (Legacy) application installed, the step will not be in the wizard. If you do not have the application installed, you can skip the step in the documentation. For more information, see [Preservation in-place](https://help.relativity.com/RelativityaiR/Content/Relativity/Preservation/Preservation_in_place.md).

#### Legal Hold project wizard security permissions:

| Object Security | Tab Visibility | Other Settings |
| --- | --- | --- |
| **Attachment** - Create, Delete | **Legal Hold**<br>• Projects | Manage Object Types |
| **Communication** - View, Create, Edit, Delete |   |   |
| **Custodian Role** - View, Create, Delete |   |   |
| **Entity** - View |   |   |
| **Legal Hold Application** - View<br>• Assign Custodian(s) |   |   |
| **Project** - View, Create, Edit |   |   |
| **Question** - Create, Delete |   |   |
| **Questionnaire** - View, Create, Edit, Delete |   |   |
| **Questionnaire Question** - View, Create, Edit, Delete |   |   |
| **Role** - View |   |   |

When a step is complete and you need to move to the next step, click *Next*. Click the Next button after entering the correct information, which displays a success message, to save your progress and move to the next step. A red failure message displays if information is incorrect or missing. Use the *Previous* to move to the previous step.

#### Project Details

Add general information about the legal hold project in the Project Details step.

1. Add information to fields.
   - **Name**—the project name.
   - **Owner**—(Optional) the project owner's name.
   - **Owner Email**—the project owner's email address. There are two instances when a project owner receives email notifications:
     - When a custodian does not have an associated manager.
     - When custodian is externally removed or externally modified, meaning removed or modified in Microsoft's Security & Compliance Center.
   - **Type**—(Optional) the type of project. By default, the Legal Hold Type is available. Click **Add** to add a new type choice.
   - **Favorite**—select **Yes** or **No** to visually indicate whether the project is a favorite from the Projects landing page.
   - **Send Release Notice for Legacy Projects**—(Optional) select **Yes** or **No** to allow users to send a release notice to custodians without prior communications. The default setting is set to **No**.
   - **Use as Template**—select **Yes** to flag project as a template for future project creation use. This template will appear in the Create New Project drop-down list. Select **No** to not use this project as a template.
   - **Subject Matter Start Date**—(Optional) the earliest date that data relevant to the matter exists.
   - **Subject Matter End Date**—(Optional) the most recent date that data relevant to the matter exists.
   - **General Counsel**—(Optional) the name of the company or organization's general counsel.
   - **External Counsel**—(Optional) the name of the company or organization's external counsel.
2. Click **Next**.

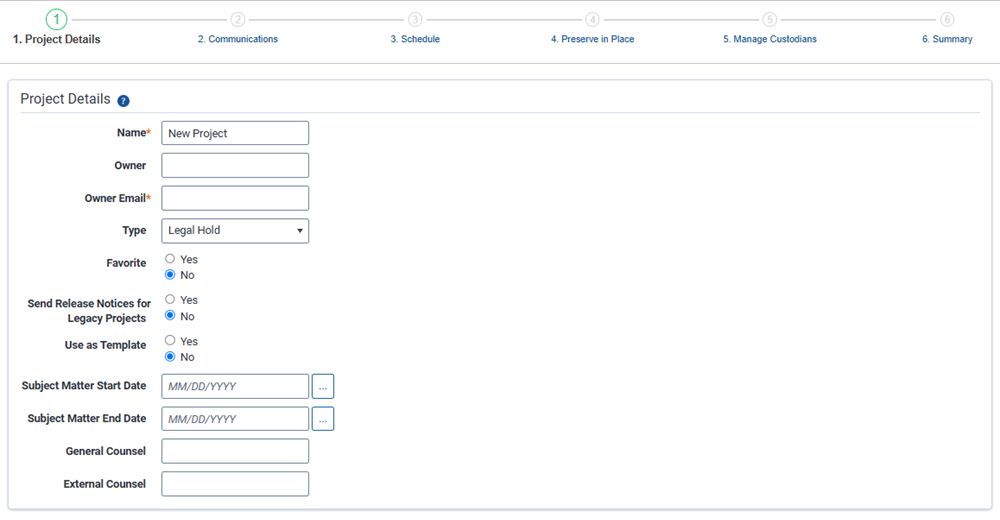

![The Project Details step of the Legal Hold wizard.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Legal_Hold/10.0/SCR_WizardProjectDetails.png)

#### Communications

Complete the Communication set by assigning communications to the project. You can assign communications to multiple projects in your workspace. You will need to have already created communications. For information on creating communications, see [Creating a communication](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Creating_communications.md).

On the Communications step, follow the steps below to add communications to the project:

1. Locate communication in Unselected Communications.
2. Click the checkbox next to a communication.
3. Click **Next**.

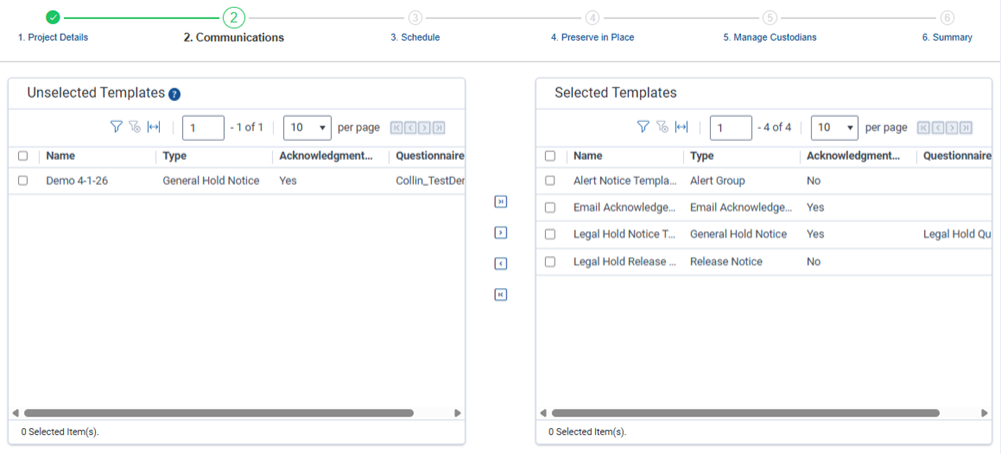

![The Communications step in the Legal Hold wizard.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Legal_Hold/10.0/SCR_WizardCommunication_1001x454.png)

#### Schedule

Complete the Schedule step by assigning dates, times, and communication recurrence levels in the project.

Follow the steps below to schedule communications:

1. Set the communication level.
2. Choose start date.
3. Choose end date.
4. Click a check box next to a communication.
5. Click the right-arrow box to move selected communication. Click the double-right-arrow box to move all communications.
6. Click **Next**.

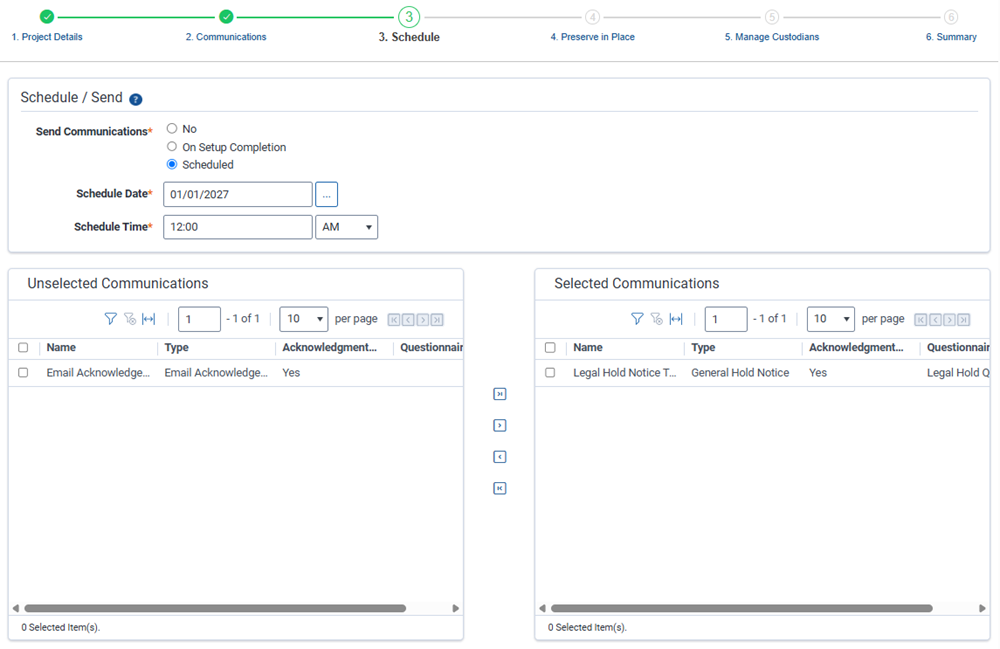

![The Schedule step of the Legal Hold wizard.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Legal_Hold/10.0/SCR_WizardSchedule.png)

#### Preserve in place

Add a preservation hold by completing the Preserve in-place step.

> **Note:** When creating a Legal Hold project, and both the Preservation hold (Legacy) app and the new Preservation in-place app are present, do not select Preservation in the wizard if you are intending to use the Preserve in-place app. To add a preservation hold using the new Preservation in-place app, see [Preservation in-place](https://help.relativity.com/RelativityaiR/Content/Relativity/Preservation/Preservation_in_place.md).
> If you do select Preservation, you will use the Preservation hold (Legacy) app and Relativity will hide any roles with the *Preserve Data (New)* tag along with the Preserve Data buttons.

To add a preservation hold using the Preservation hold (Legacy) app, enter information in the following fields:

> **Note:** To successfully complete this step, you must create a preservation case and set up data sources. For more information, see [Preservation hold (Legacy)](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Preservation_hold.md).

To add a preservation hold, enter information in the following fields:

1. Add information to the preservation fields.
   - **Preserve in Place**—select **Yes** to add a preservation hold to project. Select **No** to skip this step.
   - **Name**—the name of the Preservation Case.
   - **Preservation source**—select the already created preservation source. To create a preservation data source, see [Preservation sources](https://help.relativity.com/RelativityaiR/Content/Relativity/Preservation/Data_sources/Data_sources.md).
   - **Retry Count**—the number of times Legal Hold will retry to correct a failed Preservation Hold process.
   - **Retry Interval (Minutes)**—the number of minutes between each retry.
   - **Monitoring Interval (Hours)**—the number of hours between each time Legal Hold monitors Microsoft 365 for deletions, disabling, or edits to filter criteria made within Microsoft 365 Security & Compliance Center. Default is 1 hour.
   - **Start Date**—(optional) a preservation filter criteria that preserves data starting with this date.
   - **End Date**—(optional) a preservation filter criteria that preserves data ending with this date.
   - **Auto-Discover Targets**—option to catalog all accessible sites in SharePoint. If not enabled, the target discovery process can be manually started later in the process.
   - **Re-Discover Wait Window (Hours)**—the number of hours between each the next discovery process.
2. Click **Next**.

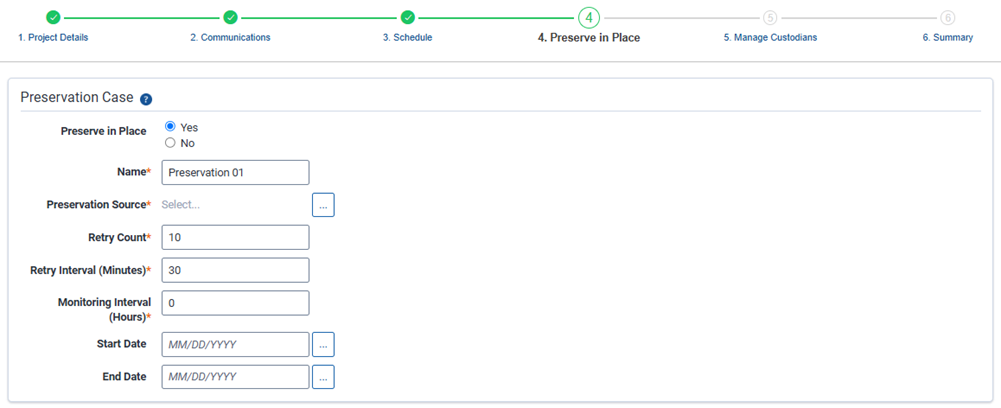

![The Preservation step in the Legal Hold wizard.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Legal_Hold/10.0/SCR_WizardPreserveinPlace.png)

> **Note:** Users cannot add or edit a Preservation Case in Edit mode after the preservation hold is initiated.

To add a preservation hold using the new Preservation in-place app, see [Preservation in-place](https://help.relativity.com/RelativityaiR/Content/Relativity/Preservation/Preservation_in_place.md).

#### Manage Custodians

Complete the Manage custodians step by assigning custodians to the project.

> **Note:** When adding custodians to the project, only add one custodian per email address. Multiple custodians with the same email address will cause issues when sending emails and releasing custodians.

Follow the steps below to assign a custodian:

1. From the Unselected custodians table, use the column filters to locate custodians.
2. Click a check box next to a custodian.

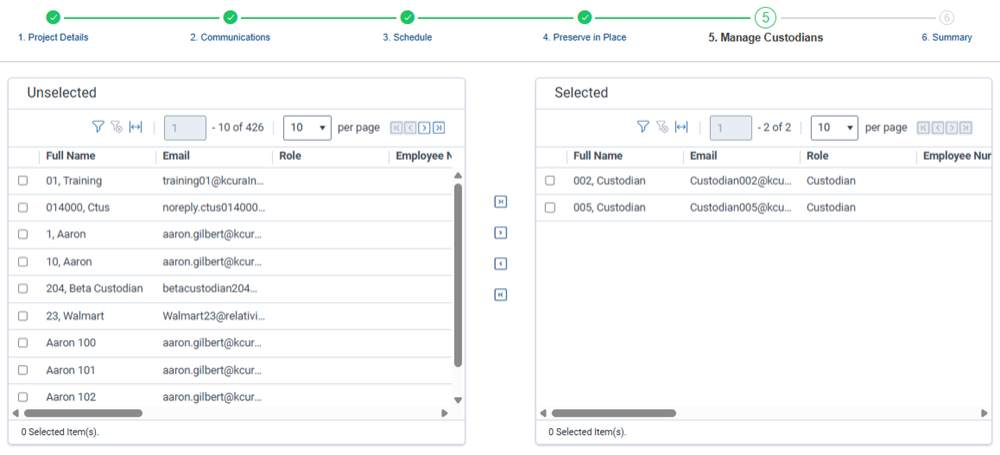

   ![The Manage Custodians step in the Legal Hold wizard.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Legal_Hold/10.0/SCR_WizardManageCustodians_1000x455.png)
3. Click the single-arrow icon to add select custodians. Click the multi-arrow icon to add all custodians.
4. Assign a role when adding a custodian using the Assign Role drop-down menu. See [Assigning roles to custodians](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Roles.md).

   > **Note:** To assign a different roles, group a custodian or custodians by role when assigning custodians to a project.

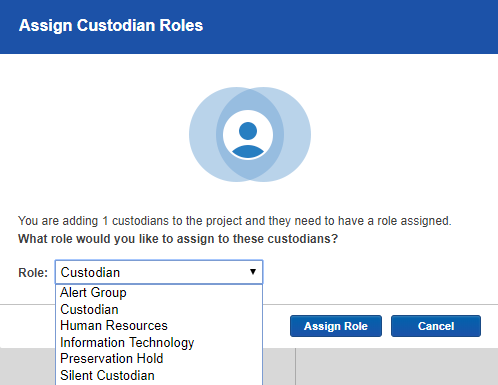

   ![The Role drop-down menu in the Assign Custodian Roles window.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Legal_Hold/10.0/SCR_WizardCustodianRole.png)

#### Summary

Complete the creation of the project by reviewing all steps taken when creating the project before finalizing. Complete the legal hold project setup by clicking **Complete Setup**.

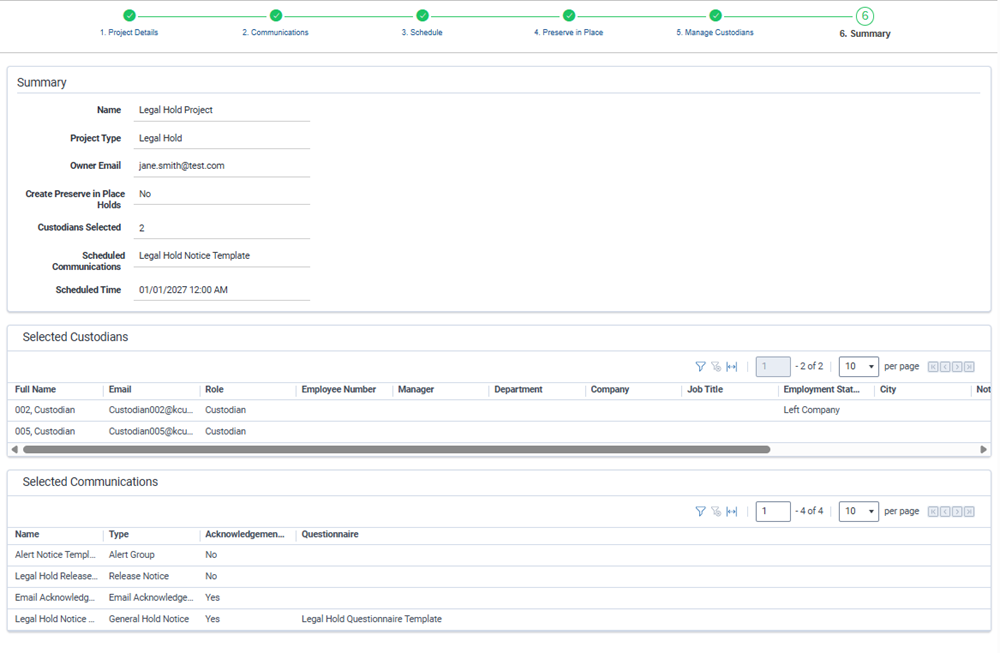

![The Summary step in the Legal Hold wizard.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Legal_Hold/10.0/SCR_WizardSummary.png)

To edit any object or field in Legal Hold, click the **Edit** icon next to the view drop-down menu at the top of the page. Edit fields and click **Save** when finished or click **Cancel** to exit without saving changes.

<details>
<summary>Alternate project creation method</summary>

1. Complete the fields on the Project Details layout. See [Project Details layout fields](#Set).
2. Click **Save**. The newly created project details page appears, and is also added to the [Projects landing page](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Projects.md#Projects).
3. (Optional) From the Project Details page Project console, you can:
   - Assign custodians to a project. See [Assigning custodians to a project](#Assignin).
   - Close a project. [Closing a project](#Closing).

To edit any object or field in Legal Hold, click the **Edit** icon next to the view drop-down menu at the top of the page. Edit fields and click **Save** when finished or click **Cancel** to exit without saving changes.

### Project Details layout fields

The Set Project Details layout contains the following fields:

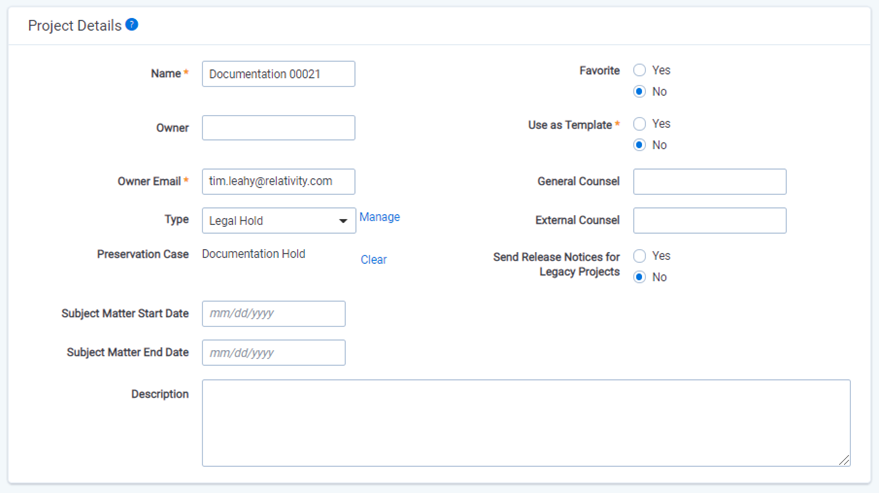

![The Project Details layout and fields.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Legal_Hold/10.0/SCR_ProjectDetails_small.png)

- **Name**—the project name.
- **Owner**—(Optional) the project owner's name.
- **Owner Email**—the project owner's email address.
- **Type**—(Optional) the type of project. By default, the Legal Hold Type is available. Click **Add** to add a new type choice.
- **Preservation Case**—the data source for the project's preservation hold.

  > **Note:** Users cannot add or edit a Preservation Case in Edit mode after the preservation hold is initiated.
- **Subject Matter Start Date**—(Optional) the earliest date that data relevant to the matter exists.
- **Subject Matter End Date**—Optional) the most recent date that data relevant to the matter exists.
- **Description**—(Optional) the description of the project.
- **Favorite**—select **Yes** or **No** to visually indicate whether the project is a favorite from the Projects landing page.
- **Use as Template**—select **Yes** to flag project as a template for future project creation use. This template will appear in the Create New Project drop-down list. Select **No** to not use this project as a template.
- **General Counsel**—(Optional) the name of the company or organization's general counsel.
- **External Counsel**—(Optional) the name of the company or organization's external counsel.
- **Send Release Notices for Legacy Projects**: (Optional) select **Yes** or **No** to allow users to send a release notice to custodians without prior communications. The default setting is set to **No**.

### Assigning custodians to a project

In order to send a communication, you need to assign a custodian to a project. You can assign a custodian after creating a project. You can also assign custodians to multiple projects in your workspace.

To assign a custodian:

1. From the Project Details page, click **Assign** from the Project console. See [Project console](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Projects.md#Projectconsole).

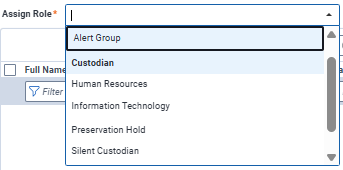

2. Assign a role when adding a person using the Assign Role drop-down menu. See [Assigning roles to custodians](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Roles.md).
   ![The Assign Role drop-down menu.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Legal_Hold/SCR_AssignRole.png)
3. From the Unselected window, choose:
   - **Select From List**—pick from a list of custodians in Legal Hold.

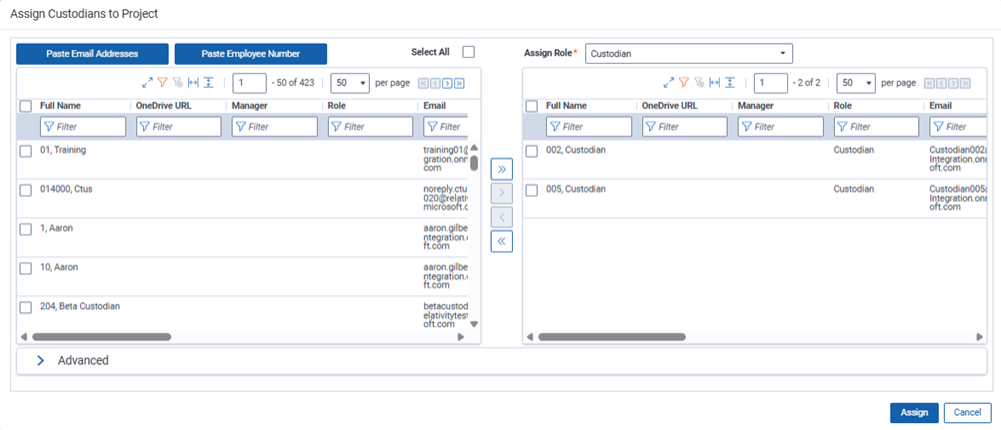

     ![Assign custodians to project from list.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Legal_Hold/4.0/SCR_AssignCustodiansSelect_1001x430.png)
   - **Paste Email Addresses**—add a list of email addresses, separated by a comma or new line.

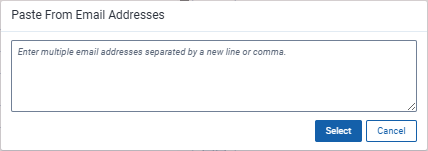

     ![Assign custodians paste email addresses.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Legal_Hold/4.0/SCR_AssignCustodiansPaste.png)
   - **Paste Employee Number**—add a list of employee numbers, separated by a comma or new line.
     ![Paste employee numbers to add custodians.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Legal_Hold/SCR_PasteFromEmployeeNumber.png)
4. (Optional) Add more custodian information in the Advanced drop-down menu.
   - **Role Notes**—(Optional) add specific information regarding a custodian’s involvement in a hold. For example, “Jane is a key player in this litigation, and we should plan to collect all her Word documents and emails.”
   - **Access to Sensitive Material**—(Optional) select **Yes** or **No** to denote whether the custodian has access to sensitive material that may be involved in the litigation.

     > **Note:** You can view the Advanced custodian information from **Project Details** > **Custodians** tab. See [Project Details](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Projects.md#Project2).
5. Click **Select (#)**.
6. Click **Assign** to assign custodians to the project.

If you need to reassign a role, use the **Change Role** button in the Project Console. For more information, see [Project console](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Projects.md#Projectconsole).

### Changing a custodian role after project creation

To add custodians to a preservation hold after a project is created, use the **Change Role** button.Legal Hold does not add custodians to the preservation hold until the role change is complete.

You must select the role before selecting custodians. For the full procedure, see [Changing a custodian's role](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Projects.md#Changing).

</details>

## Securing a project

Secure a Legal Hold project and other Legal Hold objects by clicking ![The lock icon.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Legal_Hold/ICN_OpenPadlock.png) to lock a project.

System admins can access the Legal Hold Application RDO workspace permissions to manage custom permissions at the workspace level. This level of control prevents specified users from specific actions such as sending communications or assigning custodians to projects.

> **Note:** In order for system admins to have access to the functions controlled by the Legal Hold Application Permissions, you must add those system admins to another security group or add a new group with access to the Legal Hold Application Permissions.

For more information, see [Legal Hold Application Permissions](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Workspace_security.md#Securing).

## Cancelling a project

You can set a project status to *Cancelled* if the hold is no longer needed. Cancelling a project does not remove custodians or stop all activity in the same way as closing a project.

When a project is set to Cancelled:

- The project status changes, but custodians remain assigned to the project.
- Active custodians may still receive reminders or communications related to the project.
- Preservation and other project settings are not automatically released.

Active custodians on a cancelled project will continue to receive reminders.

To stop reminders or activity for custodians, you must take one of the following actions:

- Release all custodians from the project.
  - This removes them from the hold and stops reminders.
  - For more information see, [Releasing a custodian from the project console](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Projects.md#Releasin).
- Close the project instead of cancelling it.
  - Closing a project automatically releases custodians and sends release notices (if enabled).
  - For more information, see [Closing a project](#Closing).

## Closing a project

You can close a project when a project has completed. When you close a project, the status is Closed and all custodians are released. Legal Hold sends release communications to any custodian actively on hold.

To close a project:

1. From the Project console, click **Close Project**.
2. If the project has any active people still associated with it, you need to select a release notice.
3. Click **Assign**.
4. Click **Save**. Doing this sends the release notice to any active custodian that hasn't yet received a release notice and closes the project.

Open a closed project by clicking **Open Project** on the Project console. Once you open a closed project, you can send communications again. Doing this re-activates anyone still associated with the project.

### Closing a project with a preservation hold

You must have the preservation hold permission to close a project with custodians that have preservation holds. If you don't have preservation permissions, you cannot close a project with an active preservation hold, and the **Close Project** button in the Project Console will be disabled.

To close a project with custodians on a preservation hold, follow the steps below

1. Click the Close Project button. The Close Project pop-up modal appears.
2. Select a **Release** option.
   - **with Communication**—select to alert the custodian that they've been released.
   - **Silently**—select to not alert the custodian that they've been released.
3. Click the **Using** drop-down menu if releasing with a communication, and select a communication.
4. Click **Send and Close**.

Once complete, the custodians will be notified they've been released.

## Deleting a project

If you choose to delete a project, note that Legal Hold removes all associated objects and information contained in the project.

- To delete a project from the Project Details page, click **Delete**. At the prompt, click **Delete**. See [Project Details](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Projects.md#Project2).
- To delete a project from the Projects landing page, select the project and click **Delete** from the actions menu. At the prompt, click **Delete**. See [Project Details](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Projects.md#Project2).

> **Note:** A project cannot be deleted when a custodian is on a preservation hold. To remove a custodian from a preservation hold, change the role to a non-preservation role. For more information on custodian roles in Legal Hold, see [Assigning roles to custodians](https://help.relativity.com/RelativityaiR/Content/Relativity_Legal_Hold/Roles.md).
