# Box data source

This topic provides details on how to capture Box with Collect.

> **Note:** This documentation contains references to third-party software, or technologies. While efforts are made to keep third-party references updated, the images, documentation, or guidance in this topic may not accurately represent the current behavior or user interfaces of the third-party software. For more considerations regarding third-party software, such as copyright and ownership, see [Terms of Use](https://www.relativity.com/terms-of-use/).

## Collection size

Box collections are constrained primarily by API rate limits rather than strict job limits.

| Category | Details |
| --- | --- |
| Hard limits (enforced) | No custodian hard stop. |
| Planning thresholds (guidance) | Greater than 20 custodians with large folder trees often throttled. |
| When to split | Sustained throttling. |
| Notes | API rate limits dominate. |

Monitor for throttling and split jobs reactively when limits are encountered.

## Task checklist

The table lists the order to set up this data source for Relativity aiR Collect.

| Order | Application Used | Task |
| --- | --- | --- |
| 1 | Box | [Create and authorize Collect as an application in Box](#Box) |
| 2 | Relativity aiR | [Create the Box data source instance in Collect](#CreateBoxDataSource) |
| 3 | Relativity aiR | [Configure the Box data source in Collect](#Configur) |

## Box application setup

Before using the Box data source in Collect, you must create and authorize Collect as an application in Box.

> **Note:** The Box connector relies on Server Authentication, with JWT. SSO is currently not supported.

### Creating an application with Box

Create and download a config.json file. For more information, see Box's [JWT setup documentation](https://developer.box.com/guides/authentication/jwt/jwt-setup).

The config.json file will contain the values required to configure a data source connection in Collect.

In Box:

1. Log into Box.
2. Navigate to the Developer Console.
3. Click **Create New App**.
4. Click **Custom App**.
5. Select **Server Authentication (with JWT)**.
6. Enter an App Name.
7. Click **Create App**.
8. In App Access level, select **App Access + Enterprise Access**.
9. In Content Actions, select **Read all files and folders stored in Box** and **Write all files and folders stored in Box**.
10. In Advanced Features, select **Make API calls using as-user header** and **Generate user access tokens**.
11. Add and Manage Public Keys clicking **Generate a Public/Private Keypair**. Authentication is required for this step.

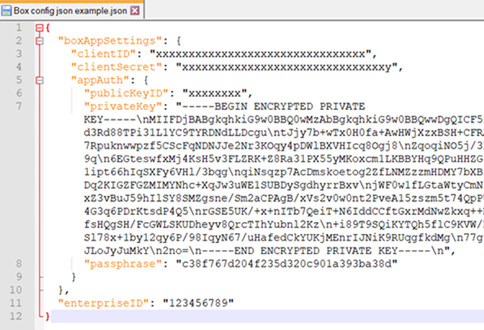

![Example of .json file that includes authentication information.](https://help.relativity.com/RelativityaiR/Content/Resources/Images/Features/Relativity_Collection/SCR_BoxConfigExample.png)

A .json file will be downloaded to your machine. Save the file in a secure location. This file contains the values required to configure a data source connection in Collect. This file can also be downloaded from the App Settings section.

### Authorizing an application

Ensure you get approval to use the Box application within your enterprise. Follow the steps provided by Box to submit for approval. For more information, see the [Box documentation](https://support.box.com/hc/en-us/articles/360043697014-Authorizing-Apps-in-the-Box-App-Approval-Process).
Finally, you must get authorization from a Box admin to use the authentication application. For more information, see [Box documentation](https://developer.box.com/guides/authorization/platform-app-approval#platform-app-approval).

## Creating the data source instance in Collect

Use the following procedure to connect the Box data source instance to Collect.

In Relativity aiR:

1. Navigate to **Collection Admin** within Collect Admin of Set Up.
2. Click the **New Collection Source Instance** button.
3. Do the following:
   - **Name**—enter in a unique name for the data source instance.
   - **Type**—select the **Box** data source.
   - **Settings**—enter the required information in the Settings fields. For more information on the fields, see [Settings fields](#Data).

4. Click **Save**. The data source displays on the Collection Admin page.

## Settings fields

Gather the information listed from the .json file, and enter it into the Settings fields:

- **Client ID**—enter the Client ID of the requesting application. This can be found with authorization_code, client_credentials, or urn:ietf:params:oauth:grant-type:jwt-bearer as the grant_type.
- **Client Secret**—enter the client secret of the requesting application to gain an access token.
- **Public Key ID**—enter the Public Key ID of the requesting application that you found in your app configuration settings .json file.
- **Private Key**—enter the encrypted private key that you found in your app configuration settings .json file.
- **Passphrase**—enter the pass phrase that you found in your app configuration settings .json file.
- **Enterprise ID**—enter the Enterprise ID that you found in your app configuration settings .json file.

### Data source details

Each data source details page includes an Actions console. The options available will be different for each data source.

You can click **Validate Connection** to validate the client ID, client secret, and other credentials with Box.

## Configuring the data source in Collect

Each data source used in Collect has different search criteria on the Collection Details step when creating a collection job. The criteria needs to be configured next.

1. Configure search criteria to collect specific data.
   - **Select and unselected tabs**—choose the data sources to collect from by moving unselected data sources to the selected list.
   - **Field**—choose the field to filter on within the data source.
   - **Operator**—choose an operator such as equals, contains, greater than, or less than.
   - **Value**—enter a value to find in the selected field.

2. Click **Add Criteria**.

The following table lists the filter criteria support for Box collections.

All dates are in Coordinated Universal Time (UTC).

| Criteria | Operators | Description | Example |
| --- | --- | --- | --- |
| Creation Date | Greater Than or Equals, Less Than or Equals | When you use the Creation Date property in a query, the search returns all messages that equal/doesn’t equal, greater/less than the date entered. | If you search “Greater Than 1/1/2001,” your results include all messages created after January 1, 2001. |
| Folder Paths | Does not equal, Equal | When you use the Folder Paths property in a query, the search returns all files that equal or do not equal the folder path entered. Enter the folder name. A hexadecimal folder ID is not required. | If you search “Equal documents/Contracts,” your results include all files within that folder path. |
| Modification Date | Greater Than or Equals, Less Than or Equals | When you use the Modification Date property in a query, the search returns all updated files that equal/doesn’t equal, greater/less than the date entered. | If you search “Less Than 1/1/2020,” your results include all files modified before January 1, 2020. |

### Folder path

Folder paths takes a comma-separated list of folder paths. For example: *All Files/Legal/2024, All Files/HR*.

Folder paths has two operators:

- **Equals**—collects only those folders and all of their subfolders.
- **Does Not Equal**—skips those folders and all of their subfolders, even when they are inside an included folder. Paths start at the root, All Files or Files, and are not case-sensitive.

A path that contains a comma must be wrapped in double quotes. The collection fails if any listed path is not found or is not accessible to the Box user.

> **Note:** File type does not affect folder discovery. For example, .json.
